SmartRack (ESPHome)

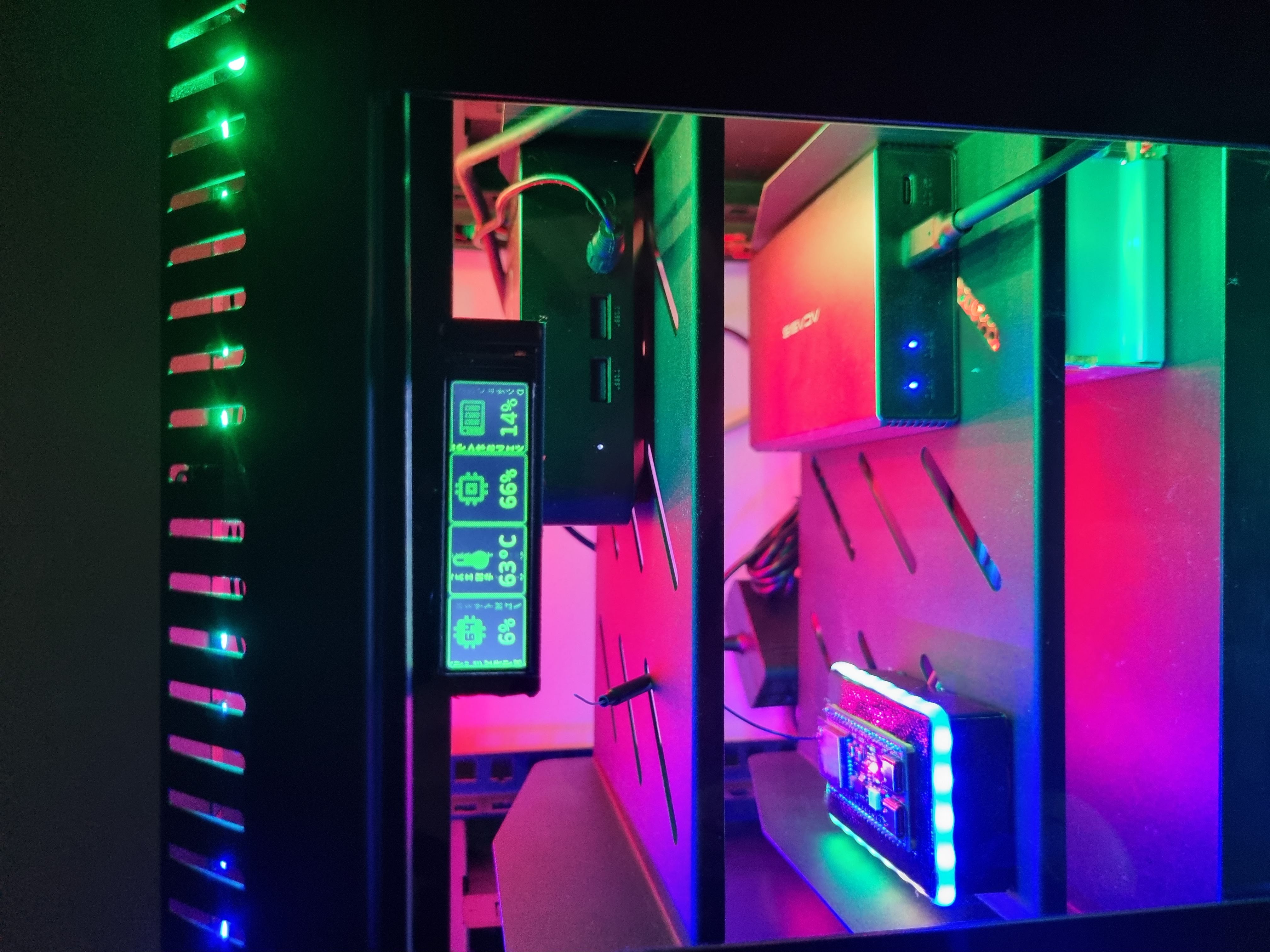

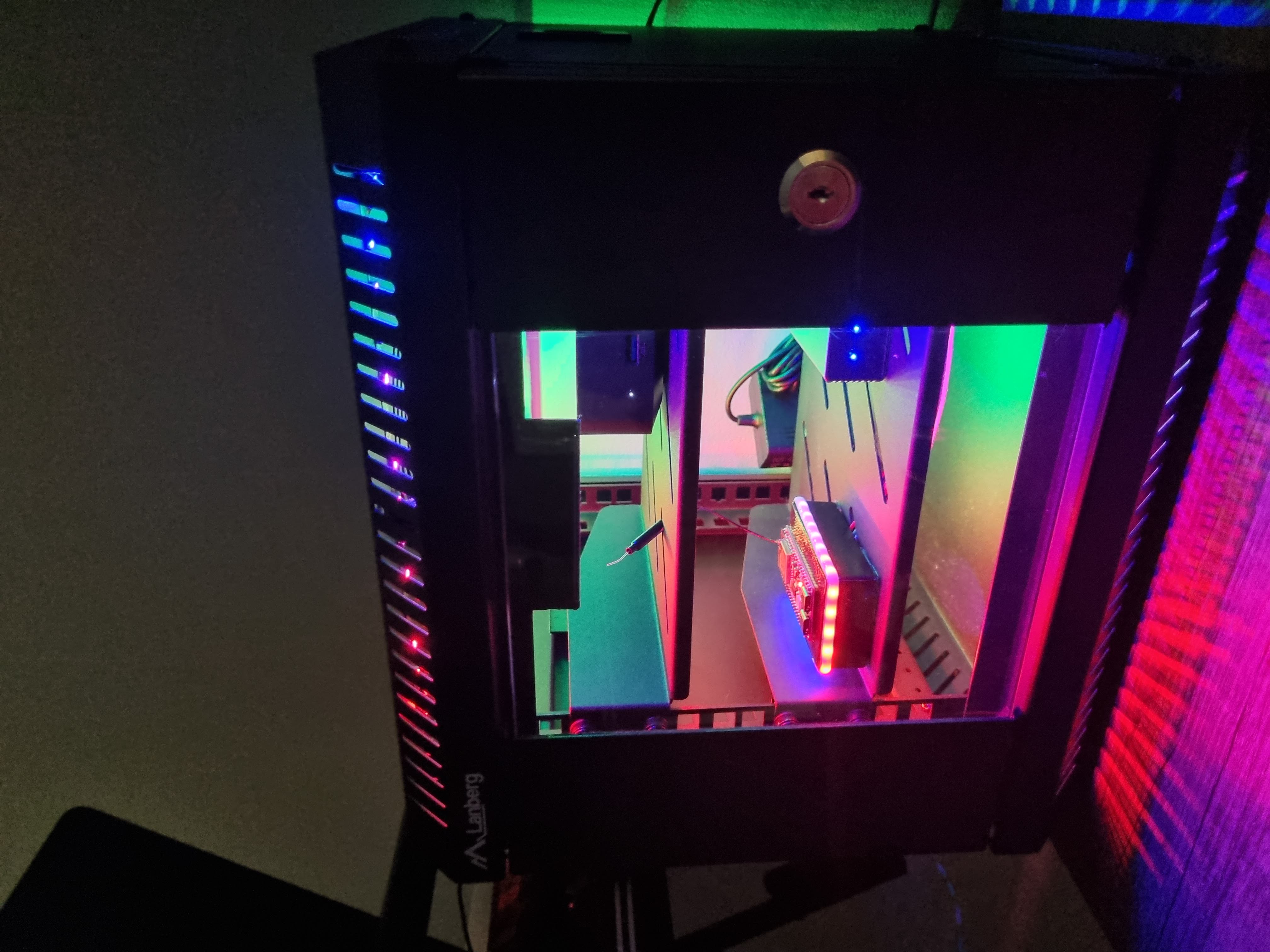

SmartRack is an ESP32-S3–based smart rack display and lighting controller built with ESPHome.
It combines LED effects, presence detection, and a live system dashboard powered by Home Assistant.

✨ Features

• 📺 LVGL Display Dashboard
  • CPU usage
  • CPU temperature
  • RAM usage
  • NAS storage usage
• 🌈 Dual LED Control
  • Internal LED ring (24 LEDs)
  • Rack LED strip (148 LEDs)
• 🧠 Smart Presence Detection
  • VL53L0X distance sensor
  • Automatic screen + lighting activation
• 🎞 Matrix Animation (56 frames)
• 📡 Home Assistant Integration
• 🔐 Encrypted API + OTA updates
• ⚡ Optimized performance (PSRAM + 240MHz CPU)

🧱 Hardware

• ESP32-S3 DevKitC-1
• WS2812 LED strips:
  • 24 LEDs (internal ring)
  • 148 LEDs (rack)
• ST7789V SPI display (284x76)
• VL53L0X distance sensor

⚙️ Configuration

Substitutions

substitutions:
  COLOR_TEXT: "0x21A321"
  COLOR_ICON: "0x005300"

ESP32 Setup

• Board: esp32-s3-devkitc-1
• CPU: 240MHz
• Flash: 16MB
• PSRAM: Octal @ 80MHz

Optimizations:

• Instructions + read-only data moved to PSRAM
• TLS 1.3 enabled
• BLE memory optimized
• Cache tuning enabled for ESP32-S3

Connectivity

• WiFi with fallback AP:
  • SSID: SmartRack
  • Password: configured in YAML
• Encrypted Home Assistant API
• OTA updates enabled

💡 Lighting

LED Ring (Internal)

• 24x WS2812 LEDs
• GPIO14
• Default: soft green light

LED Rack

• 148x WS2812 LEDs
• GPIO13
• Higher brightness than ring

Backlight

• Controlled via PWM (GPIO21)
• Monochromatic output
• Default: OFF

Behavior:

• Turns ON when occupancy detected
• Turns OFF when no presence detected
• Controls UI overlay + animation state

👁 Presence Detection

Using VL53L0X distance sensor over I2C:

• SDA: GPIO6
• SCL: GPIO7

Logic:

• Distance ≤ 0.5m → detection
• NaN or >0.5m → no detection

Debounce:

• 3 consecutive detections → ON
• 3 consecutive misses → OFF

Behavior

🖥 Display (LVGL) 2.25-inch TFT LCD ST7789 small screen 76*284 module

• Driver: ST7789V (SPI)
• Resolution: 284x76
• Rotation: 90°
• Buffer: 25%

SPI Pins:

• CLK: GPIO12
• MOSI: GPIO11
• DC: GPIO16
• CS: GPIO17
• RESET: GPIO18

UI Widgets

• CPU usage
• CPU temperature
• RAM usage
• NAS usage

Each widget:

• Icon (Material Design Icons font)
• Label with dynamic value
• Styled container with borders

🎞 Animation

• 56 JPEG frames (images/matrix/)
• Duration: 6 seconds loop
• Runs only when display is active
• Stops when display turns off

📊 Home Assistant Integration

Sensors used:

• sensor.192_168_1_11_cpu_usage
• sensor.cpu_temperature_average
• sensor.192_168_1_11_memory_usage
• sensor.192_168_1_11_tank_data_disk_usage

Updates:

• Values pushed to LVGL labels in real time
• Handles NaN values gracefully (-- fallback)

🔢 Configurable Parameters

Occupancy Fade Time

• Range: 5–60 seconds
• Step: 5 seconds
• Default: 20 seconds

Controls delay before system turns off after no presence.

📶 Diagnostics

• WiFi signal (dBm)
• WiFi signal (% calculated)
• Internal logs minimized:
  • Global: WARN
  • Sensors: ERROR

🚀 Getting Started

1. Install ESPHome
2. Copy configuration into .yaml
3. Configure secrets:

wifi_ssid: "your_wifi"
wifi_password: "your_password"
