Home Assistant Voice: Preview Edition
This is the ESPHome source code of the Home Assistant Voice: Preview Edition.
See the documentation for set up and troubleshooting.
If you need to re-install the firmware, use this installer.
Home Assistant Voice Assistant PE
ESPHome-based Voice Assistant device for Home Assistant, built on ESP32-S3.
This project provides a fully local voice pipeline with wake word detection, audio playback, LED feedback, and timer support.

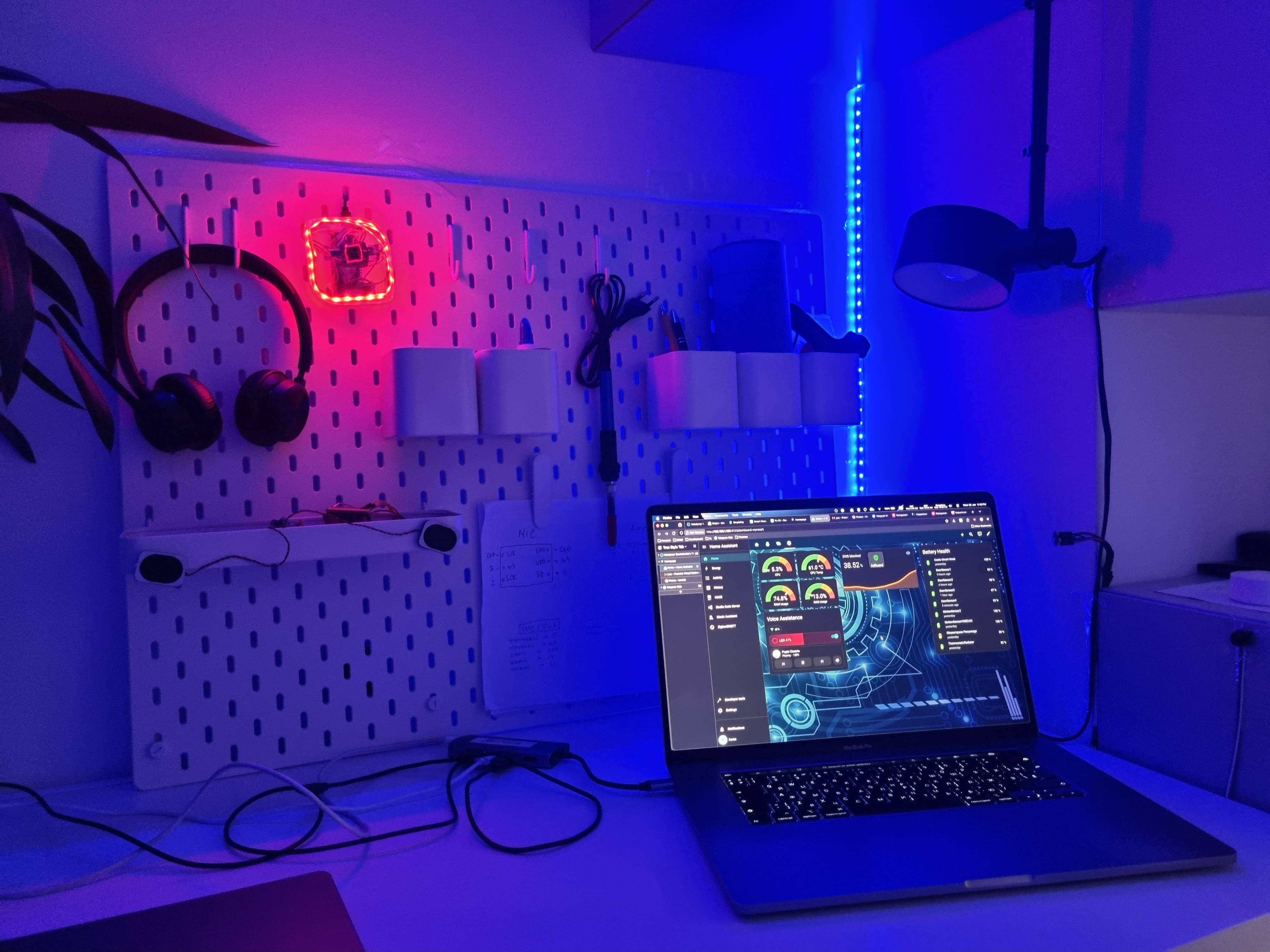

Tiny transparent box with red light ring, I2S microphone, and speaker.
✨ Features
- 🎤 Local Voice Assistant
- Wake word detection (
okay nabu,hey jarvis) - Speech-to-text (STT)
- Text-to-speech (TTS)
- Wake word detection (
- 🔊 Audio System
- I2S microphone input
- I2S speaker output (MAX98357A)
- Mixer for simultaneous media + announcements
- 💡 Smart LED Ring
- Real-time voice assistant state visualization
- Multiple animations (listening, thinking, replying, error, timers)
- ⏱ Timer Support
- Visual countdown on LED ring
- Audible alerts
- 🔇 Mute Control
- Hardware + software mute
- LED feedback when muted
- 📡 Home Assistant Integration
- Native ESPHome API (encrypted)
- 🔄 OTA Updates
- ⚡ High Performance
- ESP32-S3 @ 240MHz
- PSRAM enabled
- TLS 1.3 support

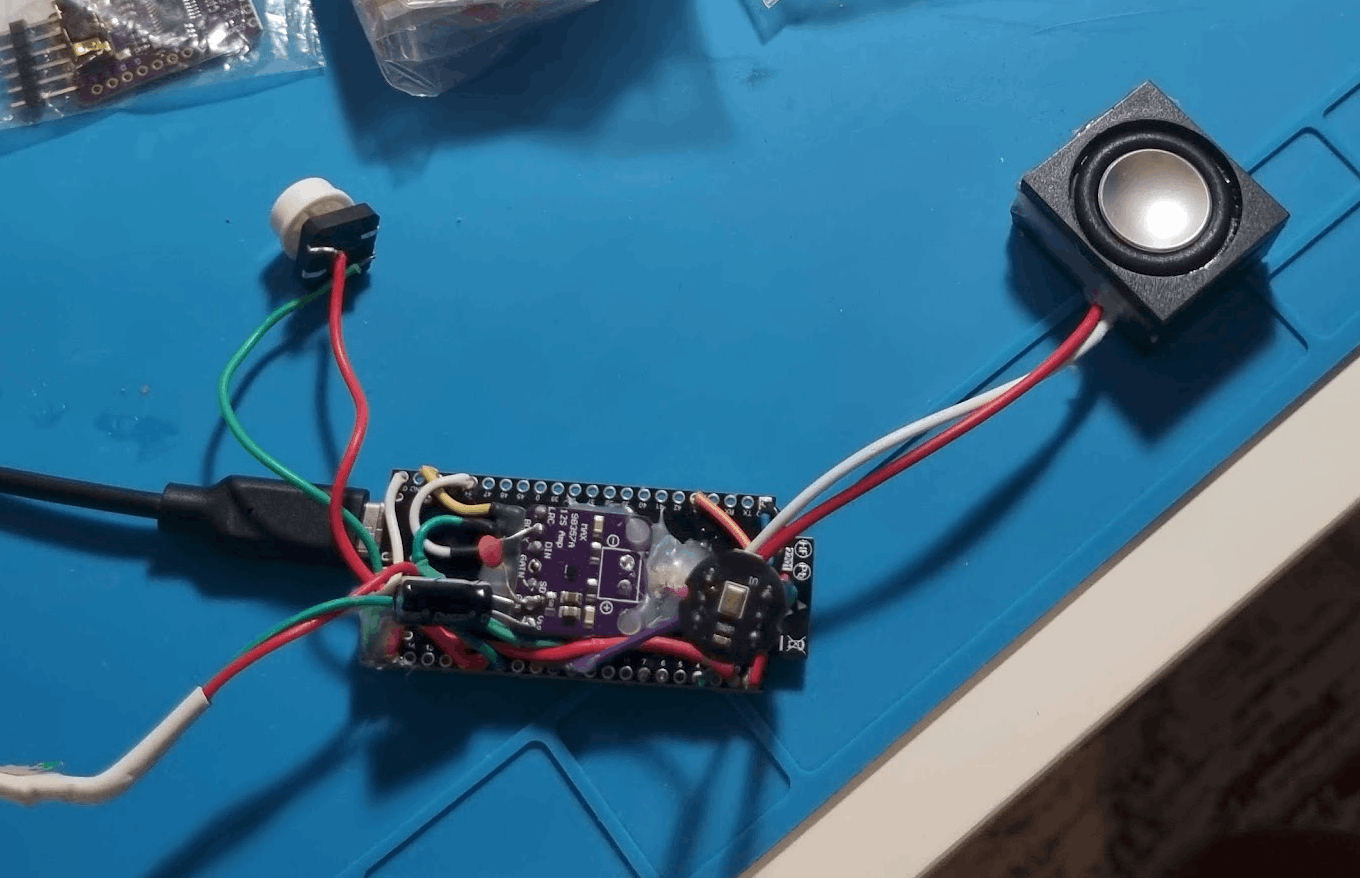

🧱 Hardware
- ESP32-S3 DevKitC-1 (16MB Flash + PSRAM)
- I2S Microphone (GPIO4 / GPIO3 / GPIO2)
- I2S Amplifier (MAX98357A on GPIO21)
- WS2812 LED Ring (26 LEDs, GPIO9)
- Hardware mute button (GPIO10)
🧠 Voice Assistant Phases
The device operates using internal state IDs:
| Phase | Description |
|---|---|
| 1 | Idle (waiting for wake word) |
| 2 | Waiting for command |
| 3 | Listening |
| 4 | Thinking |
| 5 | Replying |
| 10 | Not ready |
| 11 | Error |
These phases control LED animations and behavior.
💡 LED Ring Behavior
| State | Effect |
|---|---|
| Idle | Off (or user-controlled) |
| Waiting | Slow clockwise spin |
| Listening | Fast clockwise spin |
| Thinking | Pulsing LEDs |
| Replying | Fast counter-clockwise spin |
| Error | Red pulse |
| Muted | Red indicator LEDs |
| Timer | Progress ring / blinking |
🔇 Mute System
- Hardware mute switch overrides everything
- Software mute switch exposed to Home Assistant
- Audio + LEDs reflect mute state
- Sound feedback on toggle
🔊 Audio Pipeline
- Microphone → Voice Assistant → TTS → Speaker
- Mixer allows:
- Media playback
- Announcements
- Ducking applied during voice responses
🎧 Sounds
External sound files:
- Wake word trigger
- Mute ON/OFF
- Timer finished
Configured via URLs:
mute_switch_on_sound_file
mute_switch_off_sound_file
timer_finished_sound_file
wake_word_triggered_sound_file📄 License
Community-based project Use and modify freely
