🎵 ESP32-S3 WiFi Media Player for Home Assistant (ESPHome)

This project is a high-quality WiFi network media player based on ESP32-S3 and ESPHome, designed to integrate with Home Assistant.

Based on this https://www.youtube.com/watch?v=AhRVRsdLZBc and improved with mixer and announcement

It supports:

✅ High quality I2S audio output (PCM5102 DAC)
✅ Media playback from Home Assistant
✅ Announcement mixing with ducking
✅ Web interface
✅ OTA updates
✅ Stereo 48kHz output
✅ PSRAM optimized for audio buffering
✅ Mixer + resampler pipelines
✅ FLAC announcements (low CPU usage)

Wiring

        +-------------------+              +-------------------+
        |     ESP32-S3      |              |     PCM5102       |
        |                   |              |                   |
        | GPIO21 (LRCLK) ---+------------> | LRCK              |
        | GPIO5  (BCLK) ----+------------> | BCK               |
        | GPIO19 (DATA) ----+------------> | DIN               |
        | GND --------------+------------> | GND               |
        | 5V / 3V3 ---------+------------> | VCC               |
        +-------------------+              +-------------------+

⚠️ Power: Most PCM5102 boards work with 5V or 3.3V — check your module!

🧱 Hardware Used

Component	Image

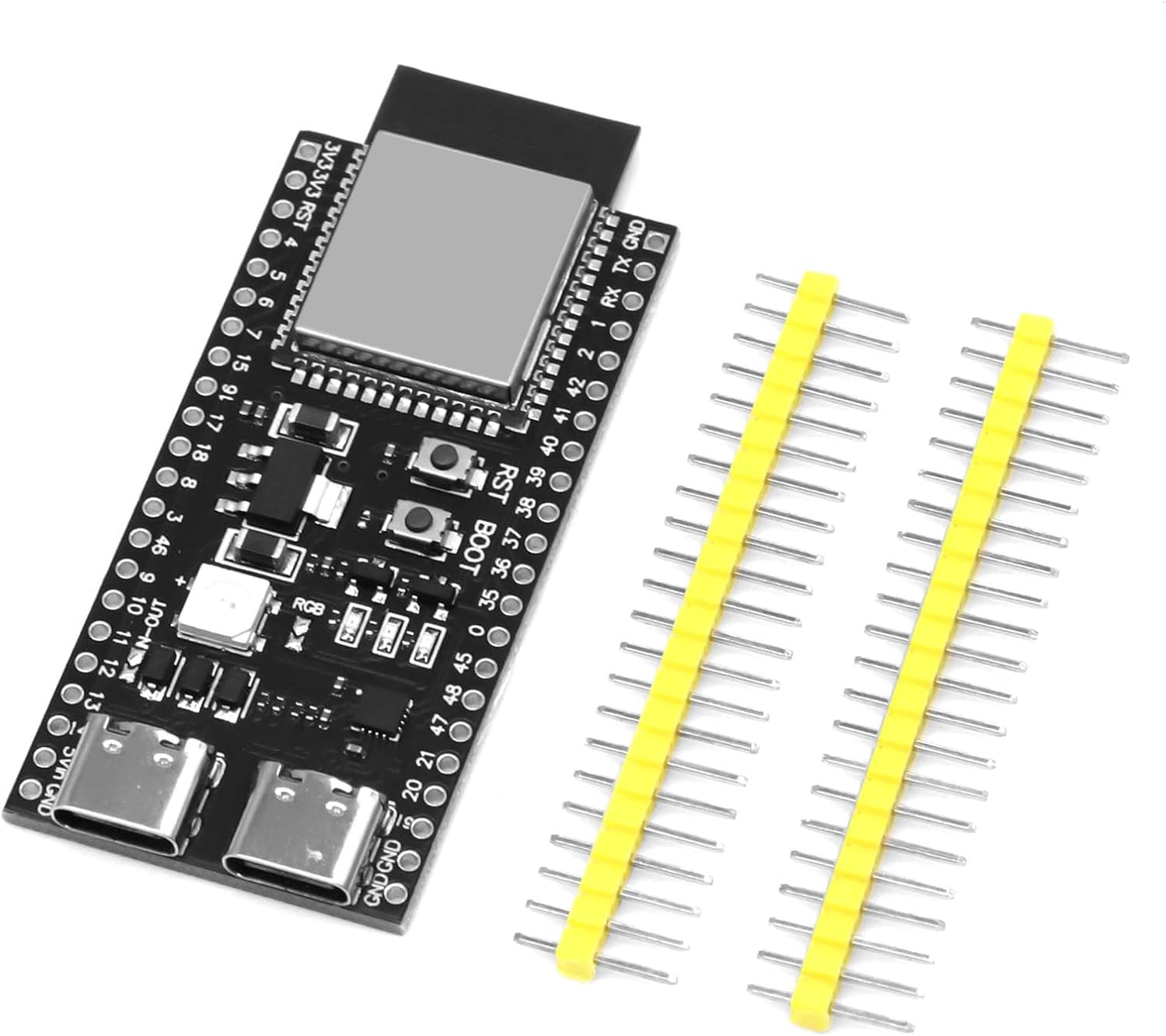

ESP32-S3

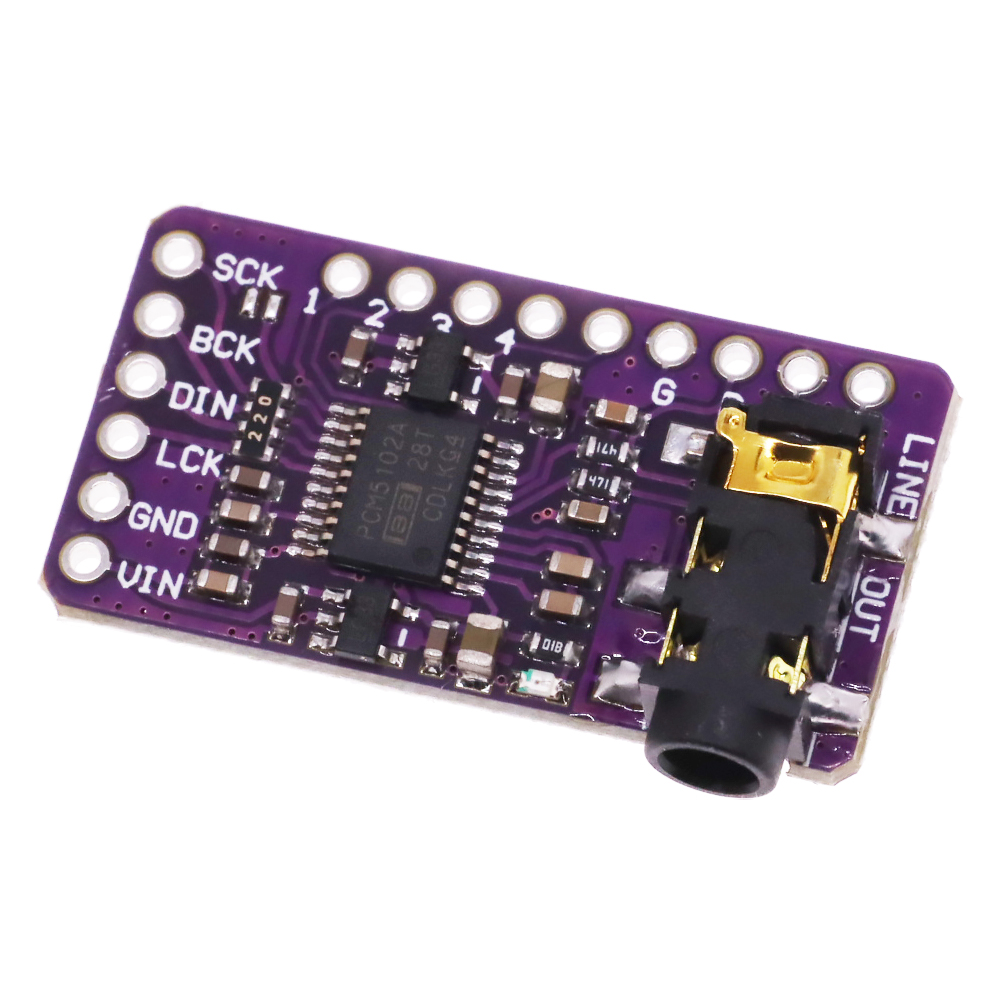

PCM5102

🛠️ ESPHome Configuration

Main features of the config:

ESP-IDF framework
PSRAM enabled and optimized
I2S audio output
Mixer speaker with two channels:
- Media
- Announcements
- Resamplers to 48kHz
- Media player component with ducking automation

🏠 Home Assistant Integration

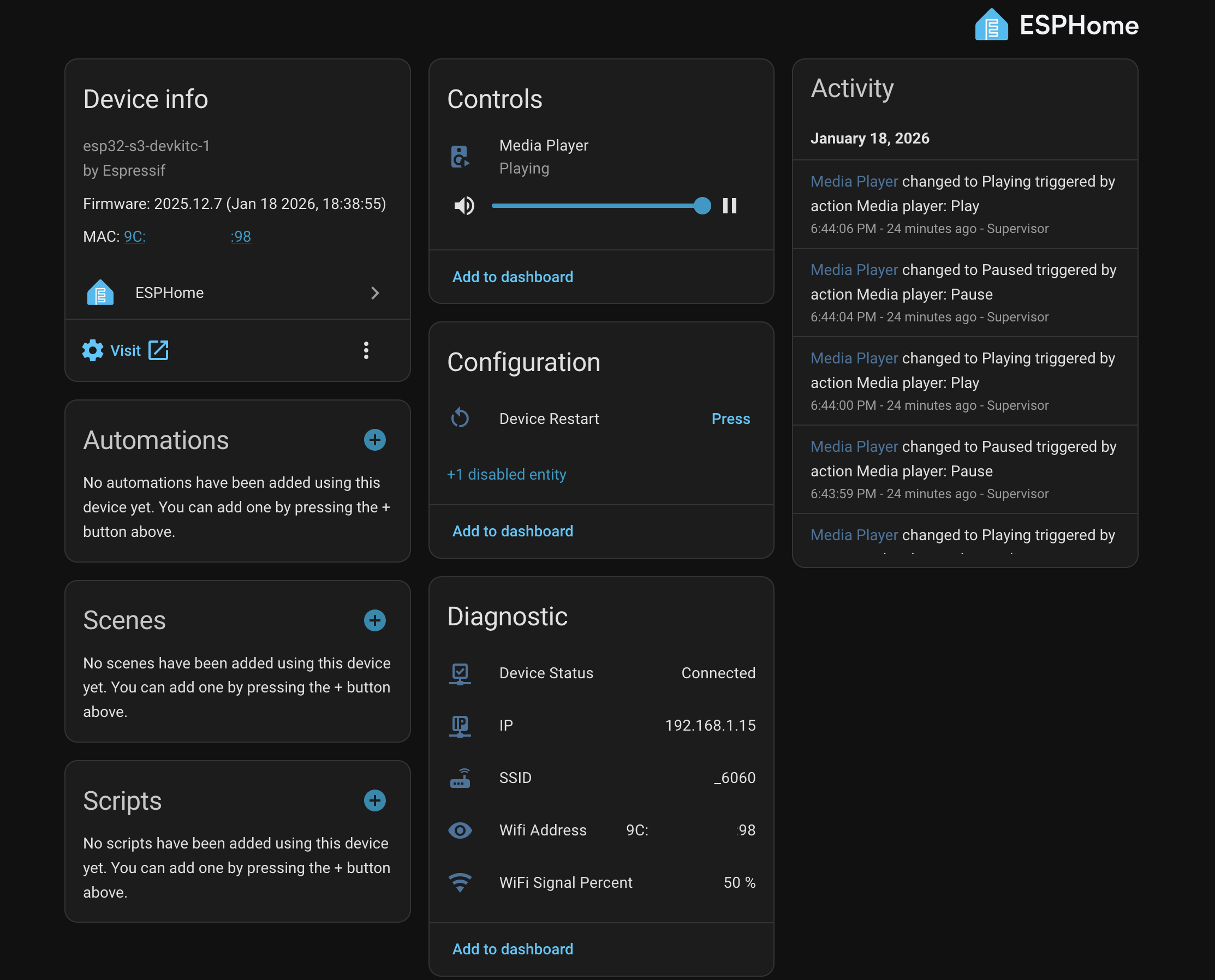

Home Assistant Example

The device appears in Home Assistant as:

📻 Media Player entity
📶 WiFi signal sensor
🌐 IP address sensor
🔁 Restart button
❤️ Online status sensor

You can:

Play media
Send TTS
Send announcements
Use it in automations
